AFRIKANET SAT-3-PLAY

SAT-3-PLAY Equipment: Specifications

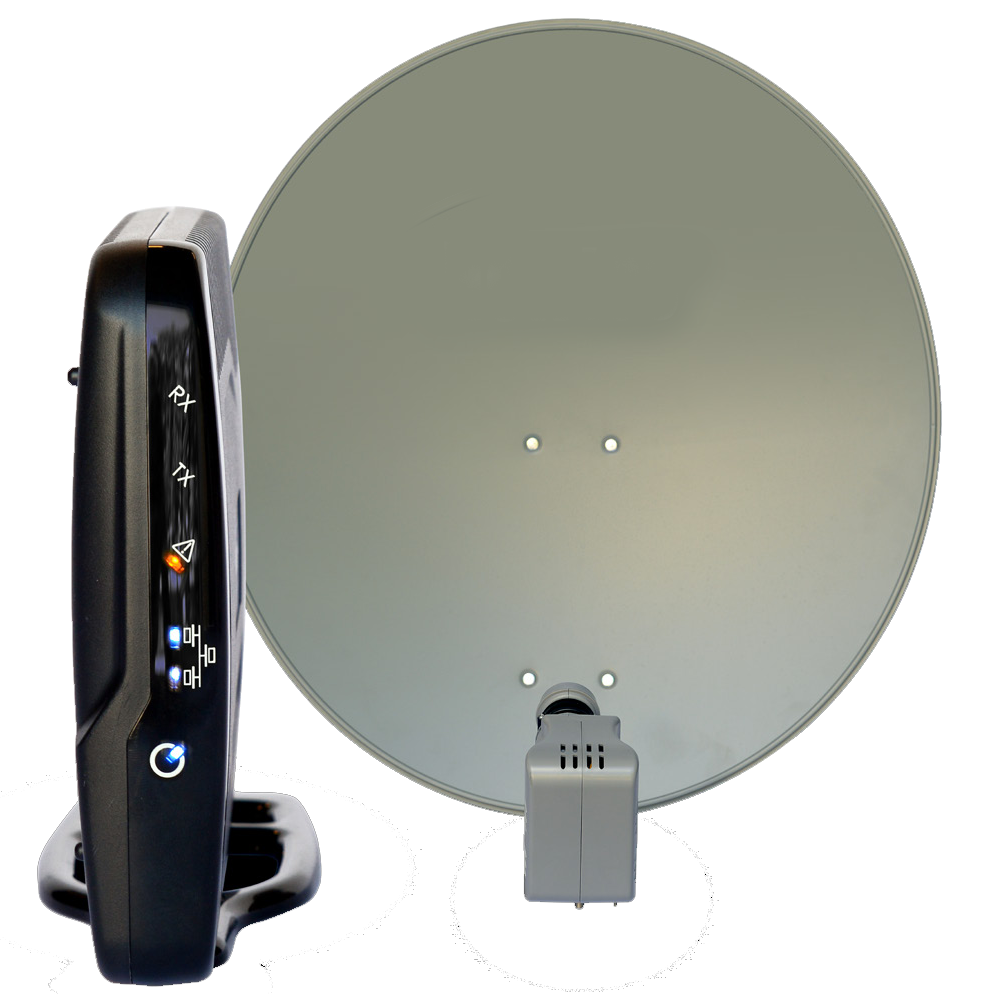

A WAKA Kit includesKit:

•     -   Dish diameter of 1m;
•     -   New generation DVB/S2 Modem;
•     -   Head transmit/receive 0.8Watts;
•     -   Set of cables and connectors.

The specifications of Modem DVB/S2 new generation are:

•     -   RF INPUT/OUTPUT connector: Two F;
•     -   Impedance: 75 Ohm;
•     -   RF in Frequency: 950 - 2100MHz (L-band)
•     -   Rx Level: -65 to -25dBm;
•     -   RF out Frequency: 2750 - 3000MHz;
•     -   Tx Level: 0 dBm;
•     -   LOCAL AREA CONNECTION 1 x 10/100 TX (RJ-45);
•     -   USB USB 2.0 (future use);
•     -   MASS STORAGE MicroSD card (future use);
•     -   Protocols: UDP, IPv4 & IPv6, ICMP, IGMPv2, TCP, ARP, DHCP, DNS, DiffServ Marking;
•     -   Management Interfaces: Multi-language Web GUI;
•     -   FORWARD CARRIER (RX): standard DVB-S2 ACM, modulation (QPSK, 8PSK, 16APSK, 32APSK), coding (1/4, 1/3, 2/5, 1/2,3/5, 2/3,3/4,4/5, 5/6, 8/9, 9/10), symbol rate (3.6 - 63 Mbaud) (up to 47Mbaud for 16APSK, up to 38Mbaud for 32APSK with 5/6);
•     -   RETURN CARRIER (TX): modulation 4CPM (Quaternary Continuous Phase Modulation) with 6 different modcods, with Adaptive Return Link, access Scheme Multi Frequency (TDMA), channel bandwidth 128kHz to 4MHz.

The specifications of WAKA antenna are:

•     - Suitable for all weather situations (Mountain, savannah plains, coastal or forest area, tropical or temperate climate);
•     - High level of integration;
•     - Low noise temperature LNB;
•     - Very low power consumption;
•     - The operating frequencies in Ku Band: Tx =13.75 a 14.5 GHz et Rx = 10.7 to 12.75 GHz;
•     - The operating frequencies in Ka Band: Tx =29.4 a 30 GHz et Rx = 19.56 a 20.2 GHz;
•     - Mechanical & Environment: Operating temperature (-30°C to 60°C), Humidity (0% - 100%), Solar Radiation (1120W/m2 maximum), Rain (Up to 40 mm/h) and Wind (Up to 180 km/h)
